Getting Started

Import the `mdai` library

import mdai

# check version
print(mdai.__version__)

The mdai client requires an access token, which authenticates you as the user. To create a new token or select an existing token, navigate to the Personal Access Tokens tab in the user settings page found on the top right of the project page on your MD.ai domain (e.g., public.md.ai).

mdai_client = mdai.Client(domain='public.md.ai', access_token="$YOUR-PERSONAL-TOKEN")

Example output:

Successfully authenticated to public.md.ai.

Keep your access tokens safe. Do not ever share your tokens.

Define a project

Define a project you have access to by passing in the project id. The project id can be found in the URL in the following format: https://public.md.ai/annotator/project/{project_id}.

For example, project_id would be LxR6zdR2 for https://public.md.ai/annotator/project/LxR6zdR2. Specify optional path as the data directory (if left blank, will default to current working directory).

A project object will attempt to download the dataset (images and annotations separately) and extract images, annotations to the specified path. However, if the latest version of images or annotations have been downloaded and extracted, then cached data is used.

Here are the various arguments that you can choose from while trying to define and download objects from a project:

p = mdai_client.project(
    project_id,
    dataset_id=None,
    label_group_id=None,
    path=".",
    force_download=False,
    annotations_only=False,
    extract_images=True,
):
"""
Arguments:
    project_id: hash ID of project (required)
    dataset_id: hash ID of dataset to use (optional - default `None`)
    label_group_id: hash ID of the label group to scope to (optional - default `None`)
    path: directory used for data (optional - default `"."`)
    force_download: if `True`, ignores possible existing data in `path` (optional - default `False`)
    annotations_only: if `True`, downloads annotations only (optional - default `False`)
    extract_images: if 'True', automatically extracts downloaded zip files for image exports (optional - default 'True')
"""

The exported data may also be scoped by individual datasets by specifying dataset_id. By default, all datasets within the project will be included.

Examples:

Using default arguments will download both images and annotations from all datasets and across all label groups:

p = mdai_client.project(project_id='LxR6zdR2', path='./lesson3-data')

Output:

Using path './lesson3-data' for data.
Preparing annotations export for project LxR6zdR2...
Preparing images export for project LxR6zdR2...
Using cached images data for project LxR6zdR2.
Using cached annotations data for project LxR6zdR2.

If you are unable to export images from within the Annotator, this feature maybe turned off in the project by your institution/company or you might not have access based on your role in the project. Contact your project admin for more details.

Create project locally with images and annotations from MD.ai

To use the MD.ai API using locally available images you need to do two things:

Images need to be in a specific format. Project requires the images to be in StudyInstanceUID/SeriesInstanceUID/SOPInstanceUID.dcm format.
Download the annotations and create the project:

PATH_TO_IMAGES = 'path to my data goes here'
PROJECT_ID = 'get the project id from the Annotator'
mdai_client.project(PROJECT_ID, path=PATH_TO_IMAGES, annotations_only=True)

This downloads the json only. Grab the name of the json file and create the project with:

p = mdai.preprocess.Project(annotations_fp=json_path, images_dir=PATH_TO_IMAGES)

The images in PATH_TO_IMAGES need to be in a specific format to work with the rest of the api. Convert your images to StudyInstanceUID/SeriesInstanceUID/SOPInstanceUID.dcm format first.

Prepare data

Show available label groups

p.show_label_groups()

Set label ids and corresponding class id

Label ids and corresponding class ids, must be explicitly set by Project.set_label_dict() method in order to prepare datasets.

Example:

# this maps label ids to class ids
labels_dict = {
    'L_ylR0L8': 0, # background
    'L_DlqEAl': 1, # lung opacity
}
p.set_labels_dict(labels_dict)

Show available datasets

p.show_datasets()

Get dataset by id or by name

dataset = p.get_dataset_by_id('D_ao3XWQ')
dataset.prepare()

dataset = p.get_dataset_by_name('Train')
dataset.prepare()

Show label ids, class id and class name

dataset.show_classes()

Example output:

Label id: L_ylR0L8, Class id: 0, Class text: No Lung Opacity
Label id: L_DlqEAl, Class id: 1, Class text: Lung Opacity

Split data into traing and validation datasets

train_dataset, valid_dataset = mdai.common_utils.train_test_split(dataset)

By default, dataset is shuffled, and the train/validation split ratio is 0.9 to 0.1.

Import the `mdai` library

Create an `mdai` client

Define a project

Create project locally with images and annotations from MD.ai

Prepare data

Show available label groups

Set label ids and corresponding class id

Show available datasets

Get dataset by id or by name

Show label ids, class id and class name

Split data into traing and validation datasets

Visualization

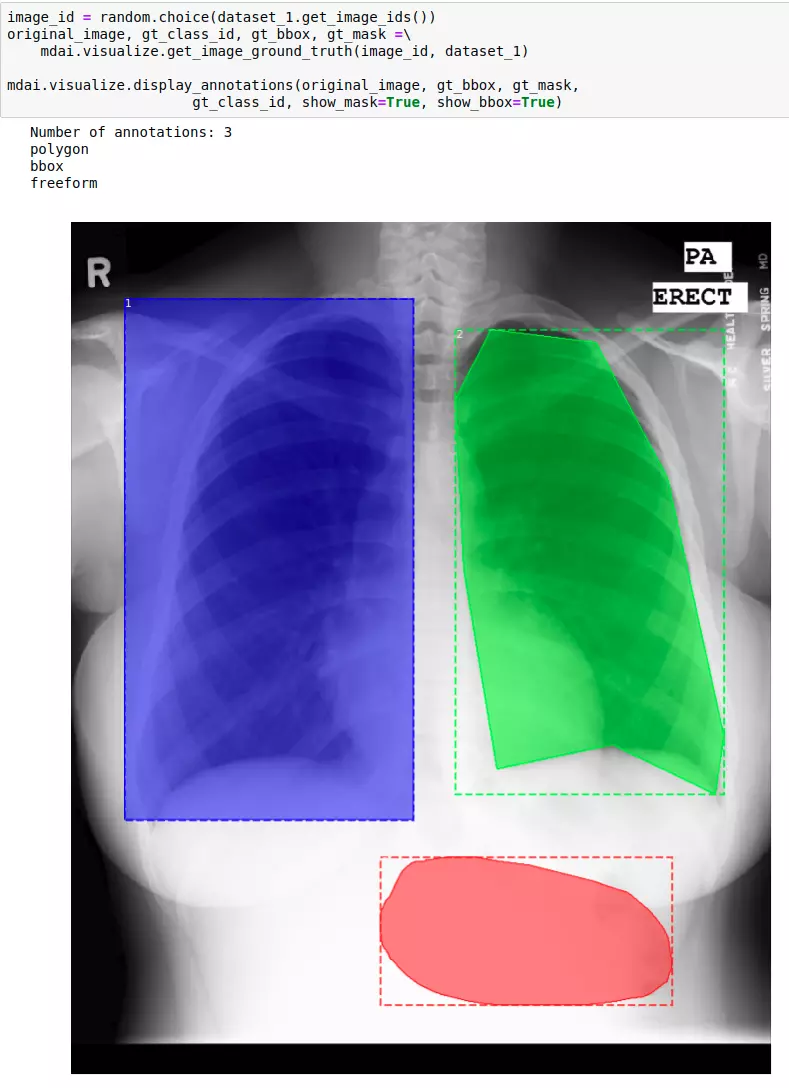

Visualization of different annotation modes

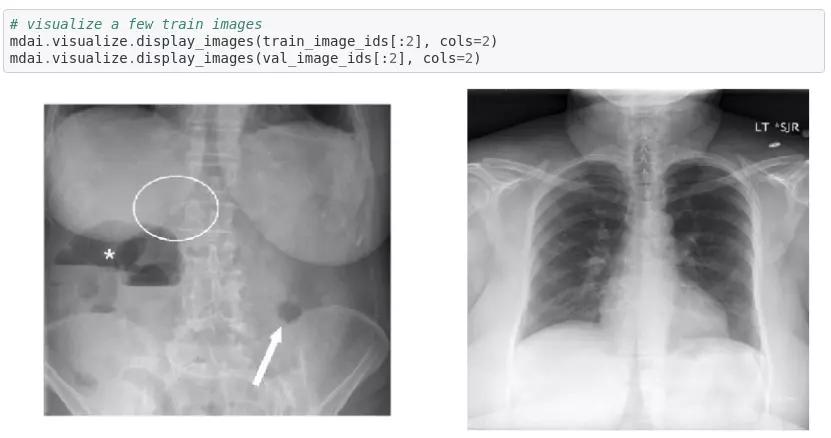

Display images
