MD.ai

How-To Guides

Increase Size of Viewing Area

  • Use Fullscreen mode with toolbar button or keyboard shortcut
  • Hide Dicom with Layers Control button
  • Make all columns narrower by clicking on headers
  • Zoom in on image

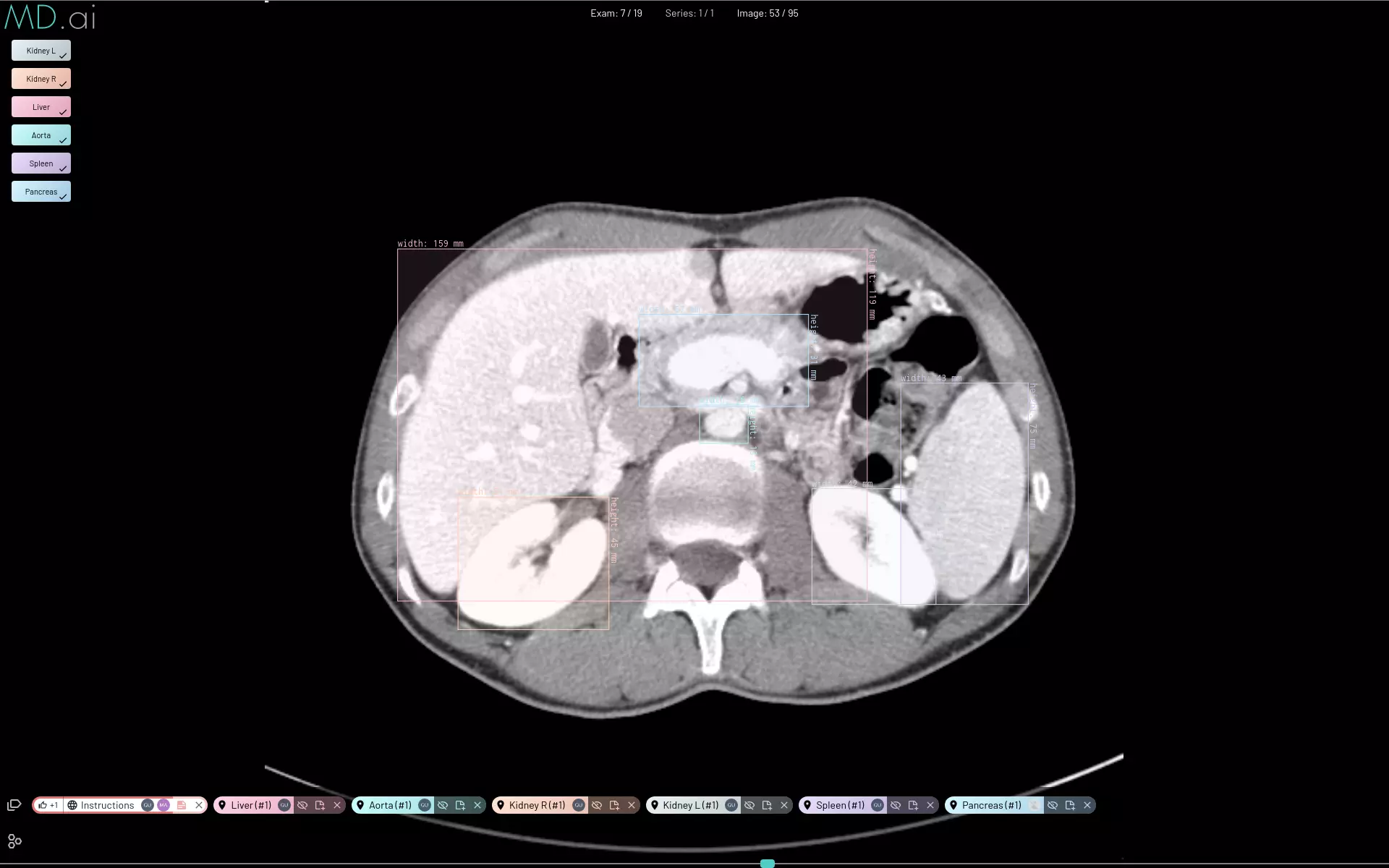

Fullscreen mode

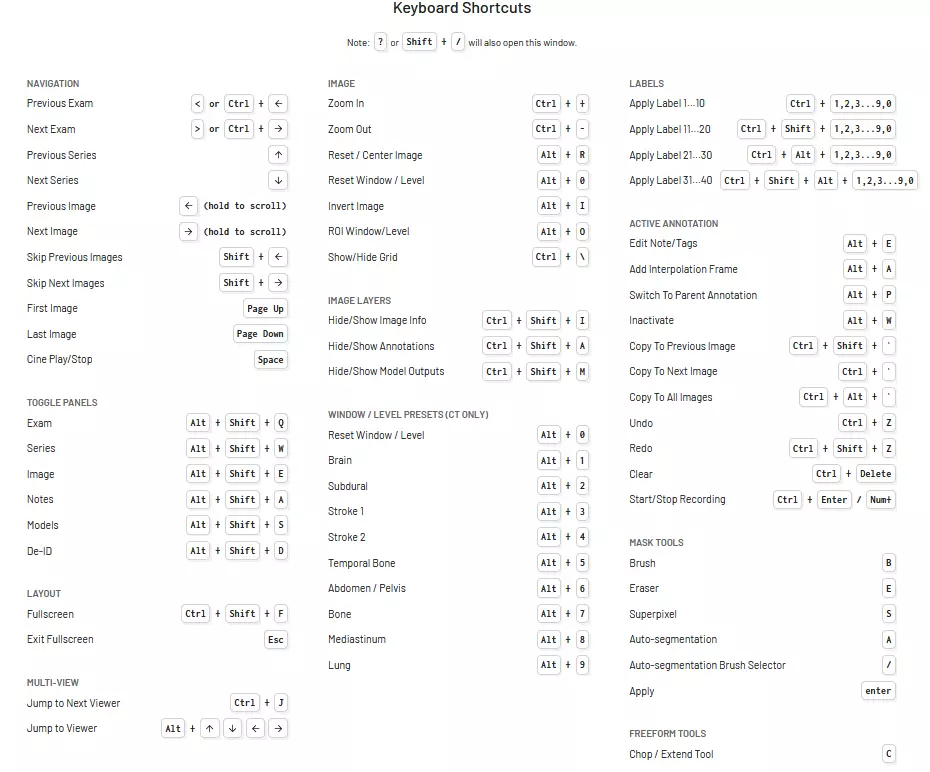

Keyboard Shortcuts

Use the keyboard icon to view the shortcuts for your operating system. Shortcuts will speed up the annotation process.

keyboard-shortcuts

Simplify Display

Hide or show dicom information, annotations, notes, measurements, and model outputs

annotator-layers-control

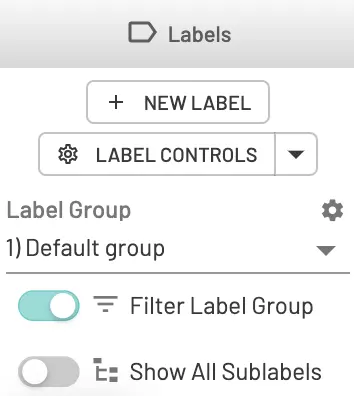

Use the Filter Label Group toggle to only show annotations in a specific label group

annotation-toggle-group-filter

Speed Up Loading

  • Refeshing the web page will clear up most issues. Try this first
  • Disable the Use Rendered Image setting in the Use Rendered Image tab to load and scroll in low res mode. Useful for large studies.
  • See Troubleshooting for advanced steps to address slow loading
